Technical Specifications

Model

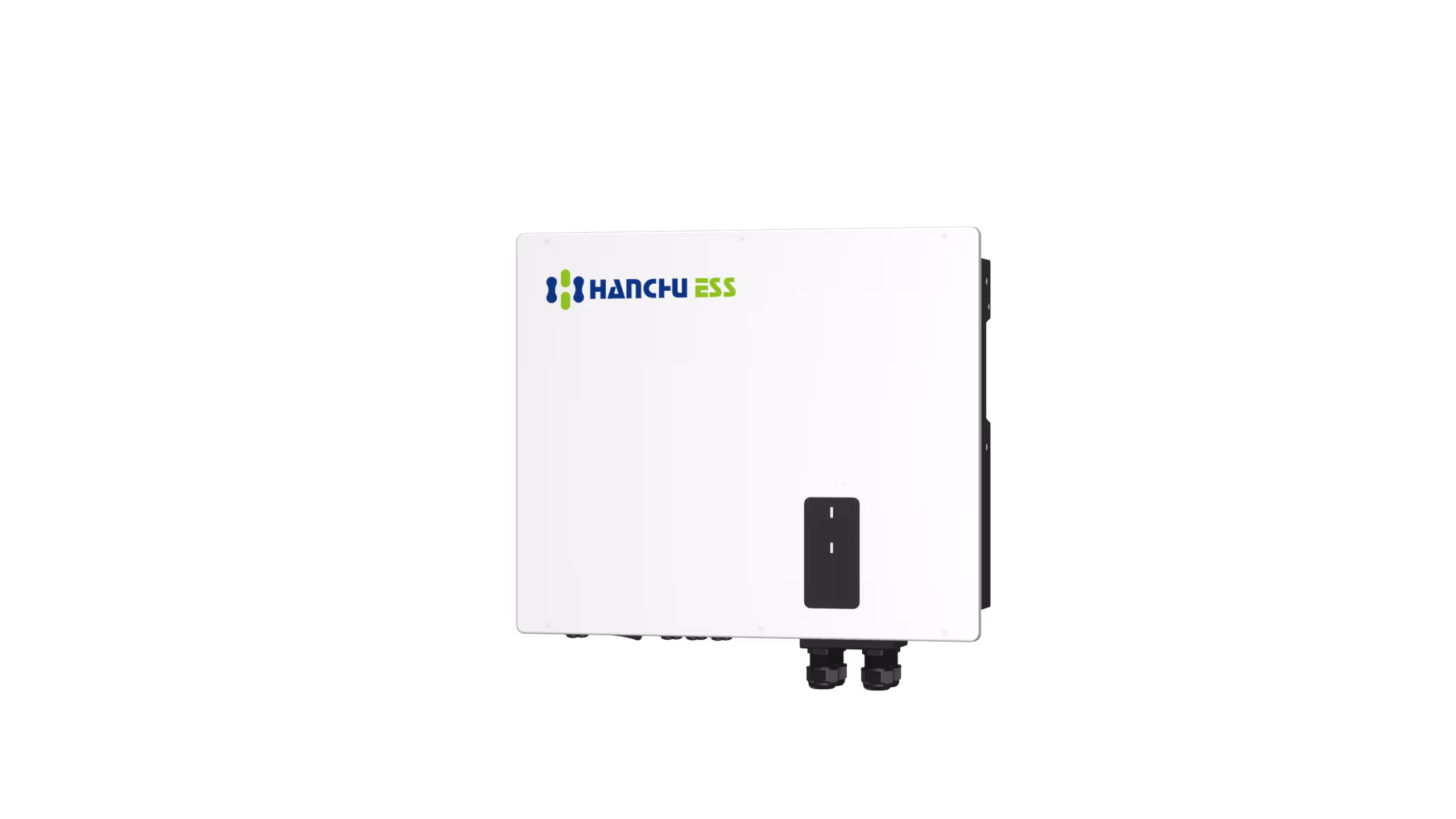

HESS-HY-T-05K

MPPT voltage range / rated input voltage

150V to 950V / 630V

No. of independent MPPT / strings per MPPT

2 / 1

Max. input current per MPPT

20A

Battery voltage range

120V to 600V

Rated AC input power from grid

10000W

Rated EPS output apparent power

5000VA

Max. switch time

<10ms

Ingree protection degree

IP66

Certificates

EN 61000/IEC 62109/EN 50549/VDE 4105/VFR 201/G98/G99/G100/CEI 0-21/NEN

‍
